Bulker Unloding System Bangalore

Bulker Unloding System Bangalore Specification

Product Type

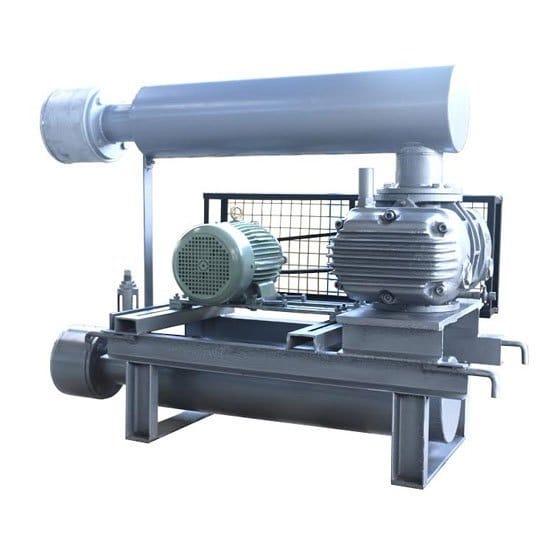

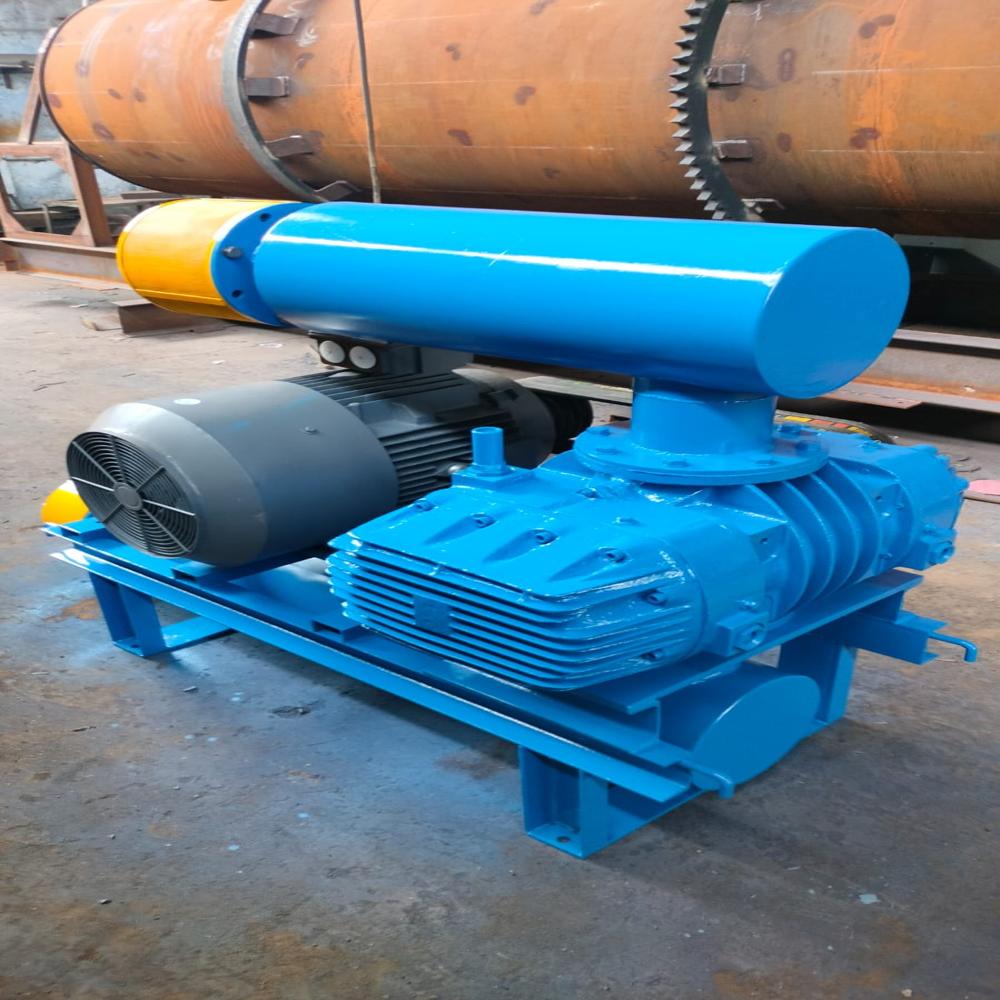

Roots Blower

Material
Steel

Pressure
Medium Pressure mpa

Bulker Unloding System Bangalore Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Packaging Details
Packing Type: Standard Export-worthy Wooden Box / Palletized ISPM-15 Treated Wooden Crate (Fumigated for Export) Protection: Bubble sheet + Stretch film wrapping for moisture protection Anti-rust oil coating on metallic parts Desiccant pouch (for humidity control during transit) Marking & Labeling: Product Name, Model & Serial No. Gross Weight & Net Weight Handling Instructions (Fragile / Keep Dry / This Side Up) Dimensions & Weight (Approx): Small Blower (up to 5 HP): 2 x 2 x 2 50~70 kg Medium Blower (5 15 HP): 3 x 2.5 x 2.5 150~250 kg Large Blower (15 40 HP): 4 x 3 x 3 400~650 kg (Exact dimensions & weight vary as per model & capacity) Accessories Packing: Base frame, silencer, filter, pulley, belt individually wrapped Hardware & foundation bolts packed in separate poly-bags Dispatch Mode: Domestic: Road / Surface Transport with protective covering Export: Seaworthy Wooden Crate, Strapped & Shrink-wrapped

Certifications
ISO 9001:2015 Quality Management Syste

About Bulker Unloding System Bangalore

Bulker Unloading System Efficient, DustFree Bulk Transit for Cement & FlyAsh

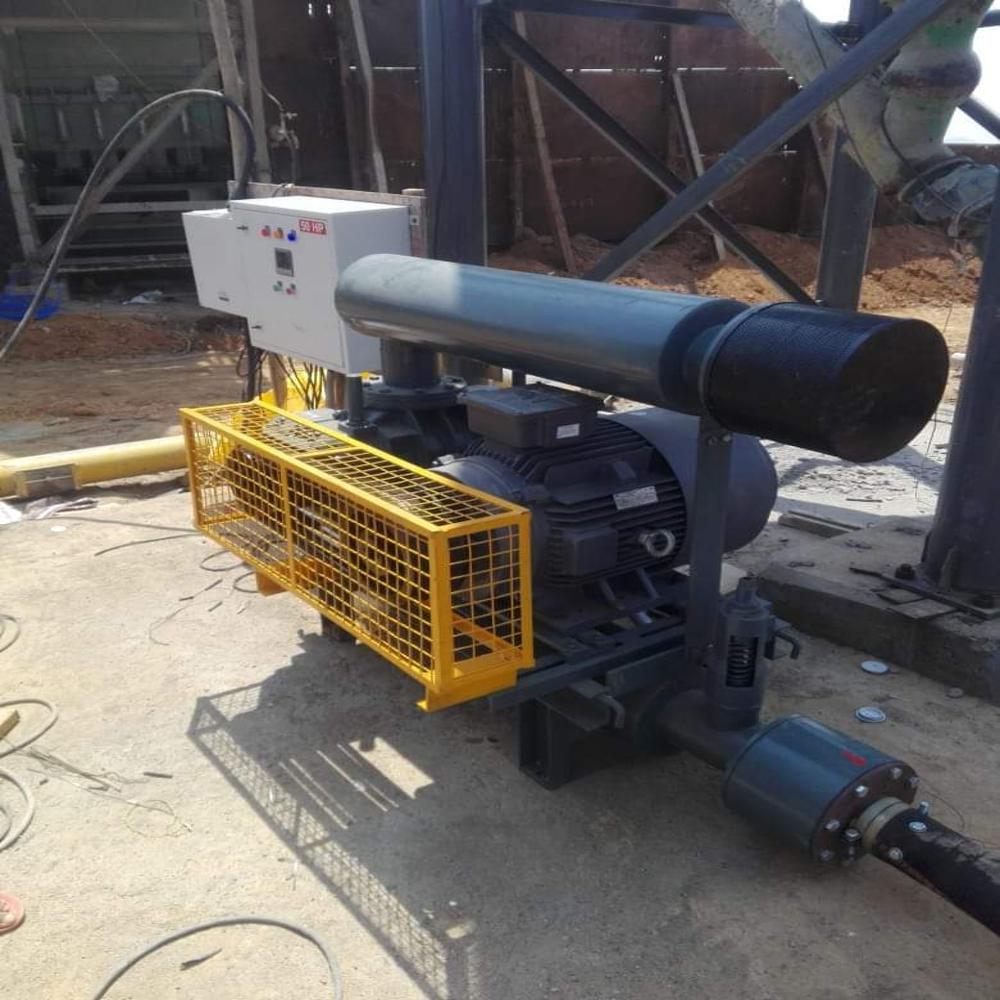

A turnkey solution for unloading powdered materials from bulker tankers directly into storage silos or hoppers, the Bulker Unloading System combines twin-lobe roots blower technology with pneumatic conveying and filtration to deliver high throughput, low manual intervention, and environmental cleanliness.

. Operation Flow

Position skid near bulker and connect hoses to truck portsair line and product (transport) line.

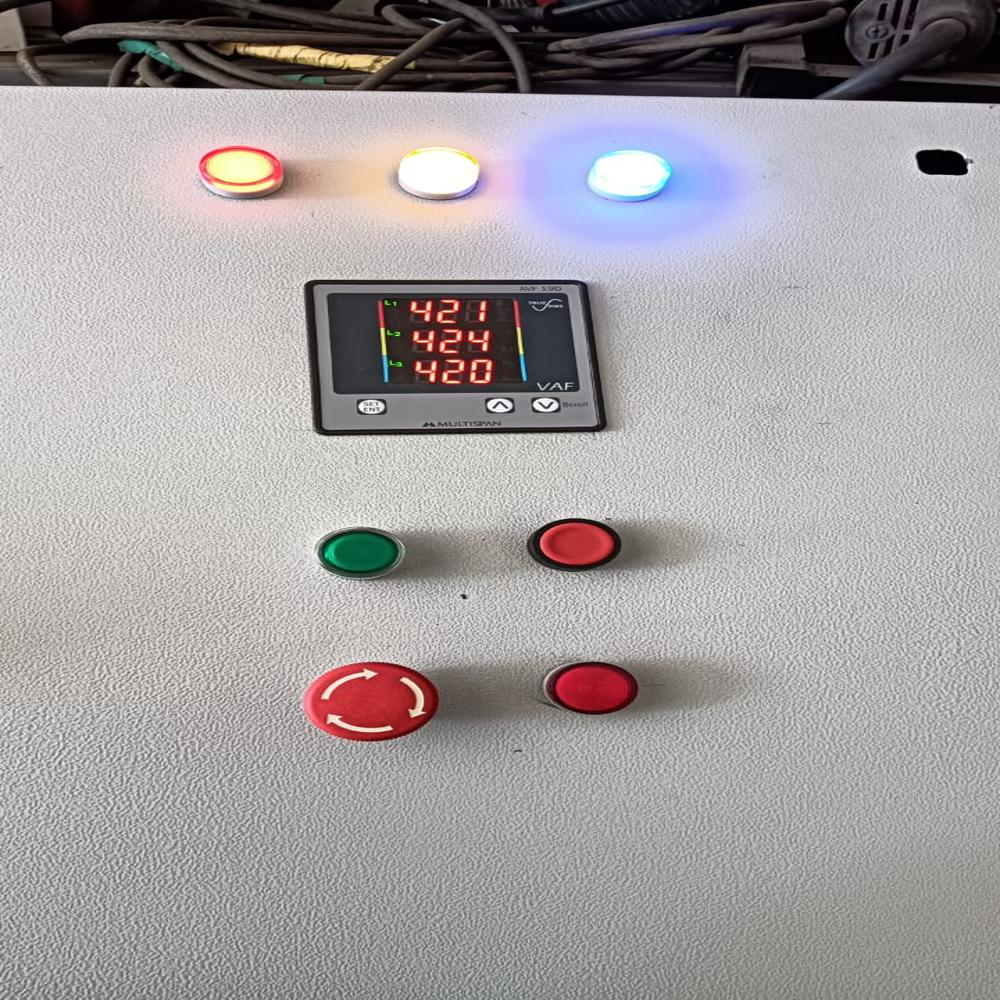

Power on blower & control panel: air into bulker headspace liquefies material bed; positive pressure convects product pneumatically.
Product flows into plant conveying pipeline into target silo or hopper.
Pressure sensors and safety valves manage flow; filters handle return air.
Disconnection automatically triggers shutdown; hoses are removed upon completion.
